T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style)

  • T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style)
  • T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style)
  • T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style)
  • T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style)
  • T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style)
Τόπος καταγωγής Κίνα
Μάρκα 3A Rubber
Πιστοποίηση ISO9001
Αριθμό μοντέλου 3A1001
Ποσότητα παραγγελίας min 10Rolls
Τιμή USD250.00
Συσκευασία λεπτομέρειες συσκευασία σε κυλίνδρους, κουτιά και παλέτες
Χρόνος παράδοσης 7-15days μετά την παραλαβή της πληρωμής του αγοραστή
Όροι πληρωμής L/C, D/P, T/T, Western Union
Δυνατότητα προσφοράς 1000 ρολά/μήνα
Λεπτομέρειες
Επισημαίνω

red silicone fiberglass fabric

,

Rogers style silicone sheet

,

T0.75mm fiberglass fabric roll
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων
T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style)
Red Silicone Coated Fiberglass Fabric (Rogers Style)
Product Overview
This high-performance composite material is engineered with alkali-free fiberglass fabric as the base substrate, coated with a specialized dual-surface silicone layer. It is designed to mimic the performance characteristics of Rogers Corporation materials. One side features a thin, fully cured silicone coating for durability and release properties, while the reverse side retains a layer of uncured silicone rubber providing a tacky, self-bonding surface. Standard thickness is 0.75mm.
Key Specifications & Performance
  • Dimensions: Thickness 0.75mm x Width 1 meter x Length 10 meters per roll
  • Temperature Range: Excellent thermal stability for continuous use from -70°C to +280°C (-94°F to +536°F)
  • Electrical Insulation: High dielectric strength (Breakdown Voltage: 20~50kV/mm), Dielectric Constant approx. 3.0~3.2
  • Mechanical Properties: High tensile strength, excellent flexibility, and superior resistance to ozone, UV, oxygen, and weathering
Product Gallery

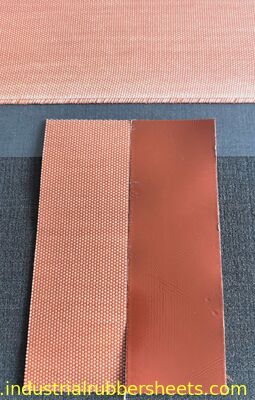

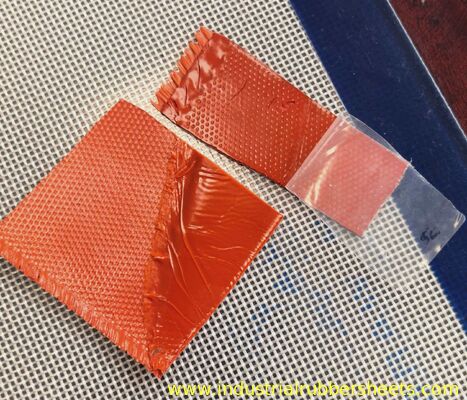

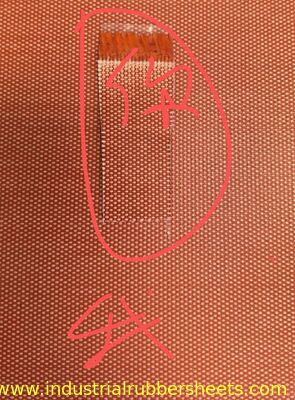

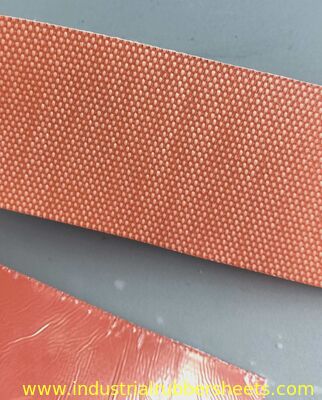

T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style) 0 T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style) 1 T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style) 2 T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style) 3 T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style) 4
Typical Applications
This "semi-cured" construction is ideal for applications requiring one-side chemical resistance or heat lamination bonding:
  • Heating Element Manufacturing: Wrapping material for Ni-Cr wire heating cables, defrosters, and flexible heaters
  • Molding & Press Cushioning: Used as a buffer/release sheet in the lamination of heat plates for new energy, LED manufacturing, and kitchen appliances
  • Thermal Insulation & Sealing: Fabrication of removable insulation jackets, pipe wraps, and high-temperature gaskets
  • Industrial Protection: Suitable for electrical insulation barriers and welding/heat shields where only one side requires contact protection
